SkyGuard-MIS
SkyGuard-MIS
ISR/FPV TACTICAL QUADCOPTER SYSTEM

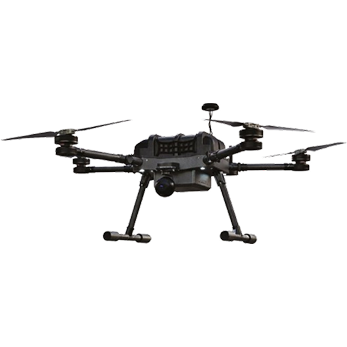

SG-MIS is a compact quadcopter ISR-FPV platform designed for modern tactical environments. It delivers real-time intelligence, surveillance, and reconnaissance capabilities. Integrated FPV provides immersive situational awareness and precise operator control. The agile quad-rotor design enables rapid deployment and high maneuverability in complex missions.
Explore SKYGUARD-MIS
Applications
BORDER SECURITY
URBAN OPERATIONS
TACTICAL SUPPORT
SEARCH & RESCUE
BATTLEFIELD INTELLIGENCE
INFRASTRUCTURE PROTECTION
Mission Capabilities
- Deliver real-time aerial intelligence for enhanced situational awareness.
- Support precision-controlled missions with low-latency first-person-view capability.
- Identify, monitor, and follow moving or stationary targets in real time.
- Provide persistent aerial surveillance for critical infrastructure and border protection.
- Enhance operational effectiveness during complex urban and tactical environments.
- Rapidly locate personnel and assess emergency situations from the air.
F2T2EA
Find
Locate potential threats and objectives using high-resolution aerial surveillance.
FIX
Confirm target location with real-time EO/IR imagery and GPS positioning.
TRACK
Continuously monitor target movement with stabilized, autonomous flight.
TARGET
Provide precise target coordinates for rapid tactical decision-making.
ENGAGE
Support FPV operations and precision mission execution with controlled payload delivery.
ASSESS
Capture post-mission intelligence to evaluate mission effectiveness and support follow-up actions.
Operational Role
The SkyGuard-MIS is engineered to provide reliable aerial intelligence, persistent surveillance, and tactical mission support across diverse operational environments. Combining extended flight endurance, secure communications, and real-time situational awareness, it enables defense and security forces to execute critical missions with greater precision and effectiveness.
Highlights
Max Takeoff Weight
9KG
FLIGHT TIME
55 Minutes
OPERATING RANGE
10 km
MAX ALTITUDE
2500 m AGL
GNSS NAVIGATION
CGallieo / BeiDou / GLONASS
WIDE CAMERA
82′ FOV
OPTICAL ZOOM
23-32x
THERMAL SENSOR
600 <512
LASER RANGE FINDER
1200 m
SYSTEM WEIGHT
12 ± 1 kg
SPECIFICATIONS
SkyGuard-MIS
Configuration
Quadcopter Platform
Flight Time
Up to 50 Minutes
Cruising Speed
25 m/s
Operating Temperature
−20°C to +60°C
Wind Resistance
10 m/s
Control Range
Up to 5 km
| GENERAL SPECIFICATIONS | |
|---|---|
| Maximum Take-Off Weight | 9 kg ± 0.5 kg |
| Total Weight of System (GCS, packed with accessories) | 12 kg ± 1.0 kg |
| GIMBAL | |
| Mechanical Range |
Yaw: -120° / +120° Pitch: -90° / +30° Roll: -90° / +60° |
| TECHNICAL PERFORMANCE | |
| Maximum Altitude | 2500 m AGL |
| Service Ceiling | 6000–8000 m ASML |
| Maximum Flight Time | 55 Minutes |
| Operating Range | 10 km |
| Navigation / GNSS | Multi Navigation System (GPS, Galileo, BeiDou & GLONASS) |
| DAY CAMERA | |
| Field of View (FOV) | 42° × 24.5° (Wide), 6.3° × 3.5° (Small) |
| Resolution | 3840 × 1920 @ 60 fps |
| Range of Action | >5 km (Standard Vehicle) |
| Zoom | 23–32× Optical Zoom and 200–400× Digital Zoom |

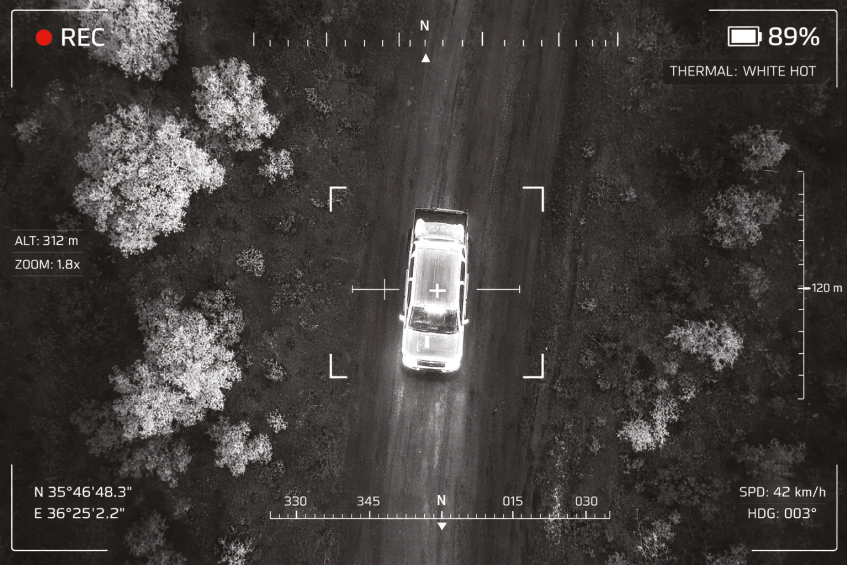

| THERMAL IMAGER CAMERA | |
| Field of View (FOV) | 8.8° × 6.6° |
| Equivalent Focal Length | 50 mm |
| Resolution | 640 × 512 @ 60 fps |
| Pixel Size | 12 micron |
| LASER RANGE FINDER | |
| Range | Up to 3000 m |
| FPV TECHNICAL SPECIFICATION | |
| Take-Off Weight (Including Payload) | 4.5 kg |
| Flight Time (with Payload) | 15 Minutes |
| Flight Altitude (Max) | 1000 m (AGL) |
| Maximum Speed | 20 m/s |
| Maximum Range | 10 km |
