System Cable 6 Pin
Video Output and Power Input Cable with standard RCA and USB connectors
SKUA-MP Pro 80
Multi Purpose Bino
MULTI PURPOSE THERMAL BINO
SKUA MP PRO is a LRF equipped (6Km) compact thermal binocular for users seeking a quality thermal
image with a lightweight and highly portable thermal binocular which can be a part of their operations
related to observation, surveillance, range finding and spotting for target acquisition
Laser Range Finder
Choice of 4 / 6 Km LRF Module
Convenient Power
Power up the SKUA MP PRO with 3x 18650 Battery
Experience High Quality
640x880 Sensor for an amazing view & clarity
Exceptional
Detect Vehicle Size Targets up to 5000 meters
GPS / GLONASS Compatible
Built-in GPS / GLONASS receiver
DMC
Built in DMC ensures real-time directional accuracy
Explore SKUA-MP Pro

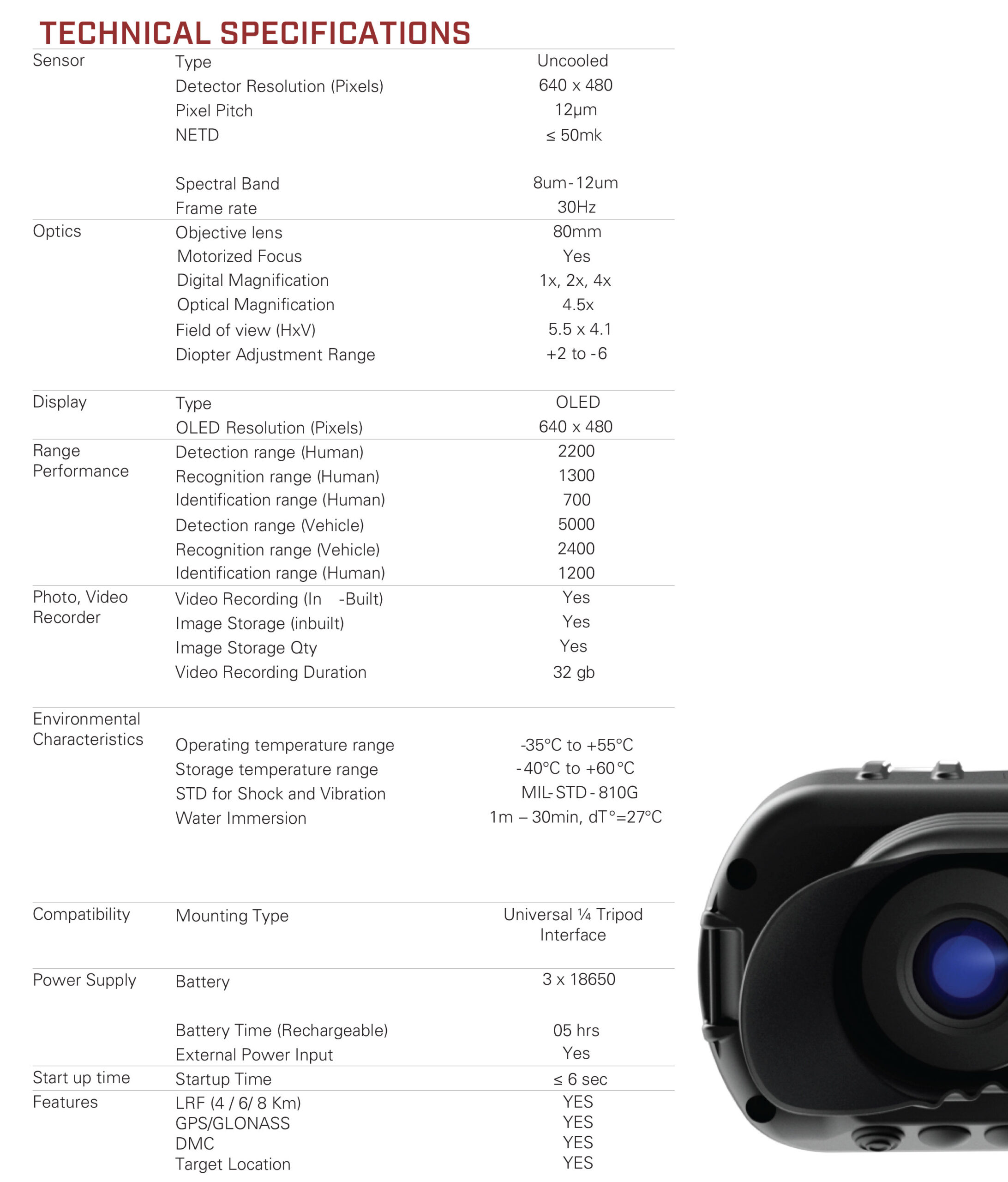

Specifications
SKUA-MP Pro 80 APL
SKUA-MP Pro 80 APL
| Products | SKUA MP Pro 12µm | |
|
Sensor |
Type | uncooled |
| Detector Resolution (Pixels) | 1280 x 1024 | |
| Pixel Pitch | 12µm | |
| Thermal Senstivity (NETD) | ≤ 50mk | |
| Spectral Band | 8um-12um | |
| Frame rate | 30Hz | |
|
Optics |
Objective lens | 100mm |
| Digital Magnification | 1x, 2x, 4x | |
| Optical Magnification | 4.5x | |
| Field of view (HxV) | ~8.8 x 7.0 | |
| Diopter Adjustment Range | +2 to -6 | |
|
Display |
Type | OLED |
| OLED Resolution (Pixels) | 1280 x 1024 | |
|
Range Performance |
Detection range (Human) | 2200 |
| Recognition range (Human) | 1300 | |
| Identification range (Human) | 700 | |
| Detection range (Vehicle) | 5000 | |
| Recognition range (Vehicle) | 2400 | |
| Identification range (Vehicle) | 1200 | |
|
Photo, Video Recorder |
Video Recording (In-Built) | Yes |
| Image Storage (inbuilt) | Yes | |
| Image Storage Qty | Yes | |
| Video Recording Duration | Yes | |
| Memory Size | 32GB | |
|
Environmental Characteristics |
Operating temperature range | -35°C to +55°C |
| Storage temperature range | -40°C to +60°C | |
| Relative Humidity | 30%<RH<90% | |
| STD for Shock and Vibration | MIL-STD-810G | |
| STD for Water Immersion | MIL-STD-810G | |
| Water Immersion | 1m – 30min, dT°=27°C | |
|
Compatibility |
Standard Mount Name | Universal 1/4 Tripod interface |
| Mounting Type | Screw | |
|
Power Supply |
Battery type | 3×18650 |
| Battery Time (Rechargeable) | < 05 hrs | |
| External Power Input | Yes | |
| Start up time | Startup Time | ≤ 6 sec |
| Weight | Weight (Complete), kg | < 1.5 Kg |
|
Laser Rangefinder |
Safety class for laser equipment according to IEC 60825-1:2014 | Class 1 , Eye-Safe |
| Wavelength | 1550 nm | |
| Max. measuring range | 3km, 4km, 6km | |
| Measurement accuracy | +/- 1m | |
|
GPS GLOBAL POSITIONING SYSTEM |
GPS(yes/no) | Yes |
| Scale and formate | LAT-LONG/UTM | |
| Position Accuracy (horizontal) | <2.5 m | |
|
Digital Magnetic Compass |
DMC (yes/no) | Yes |
| Compass unit | (degrees/mils) | |
| Target Localization | Target Localization | Yes |
| COLOR PALLETTES | Available COLOURS | White hot / Black hot |
Accessories
Soft Carrying Pouch
Soft and light weight carrying pouch for easy handling and portability
SKUA MP PRO 100
