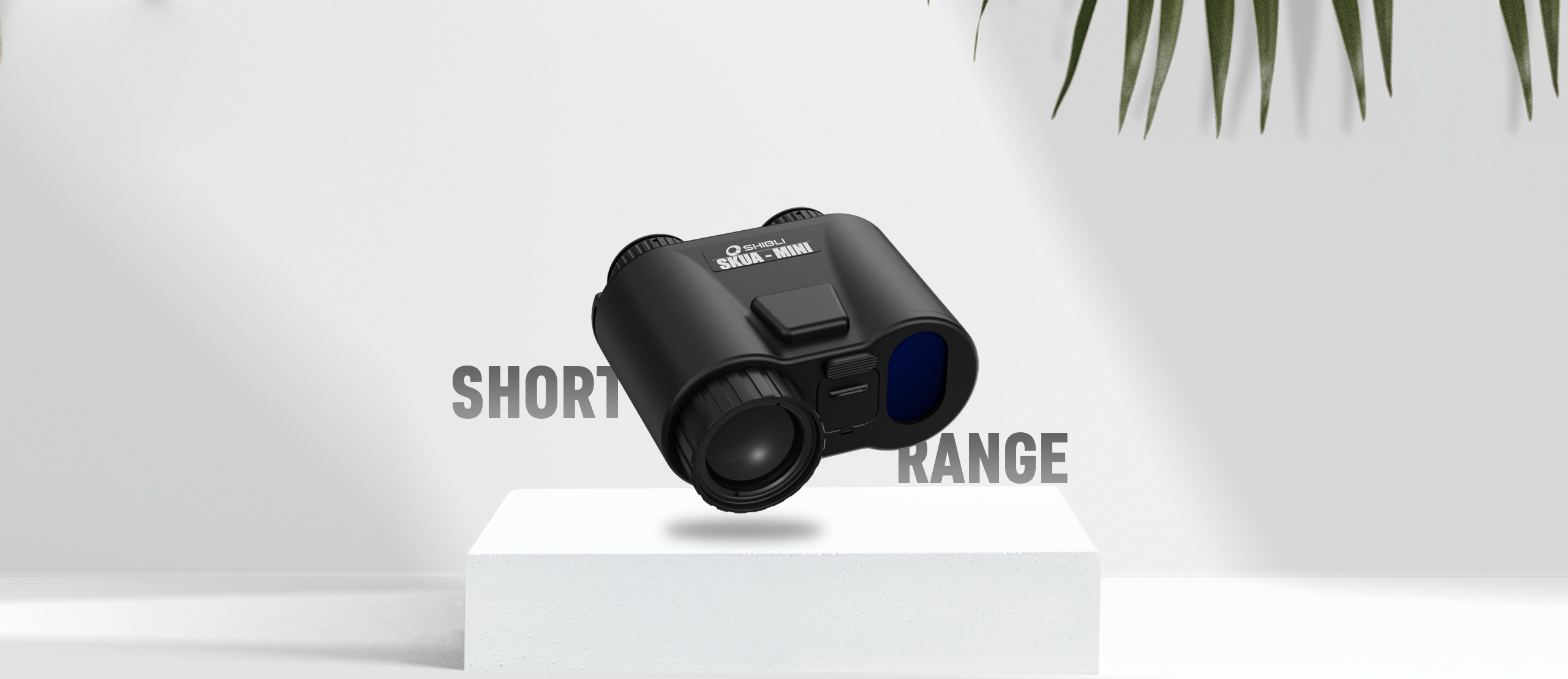

SKUA-MINI
Thermal Binocular
SKUA-MINI Thermal Bino
SKUA MINI is compact thermal binocular for enthusiasts and users seeking a quality thermal image with a lightweight and highly portable thermal binocular which can be a part of their gear whenever they are in outdoors.
Explore SKUA-MINI Short Range Thermal Bino
Mighty on Performance
Although SKUA-MINI is tiny in presence but its might in performance. The sight can detect vehicle size objects at long distance ranges.
Human 1500m
Vehicle 3000m

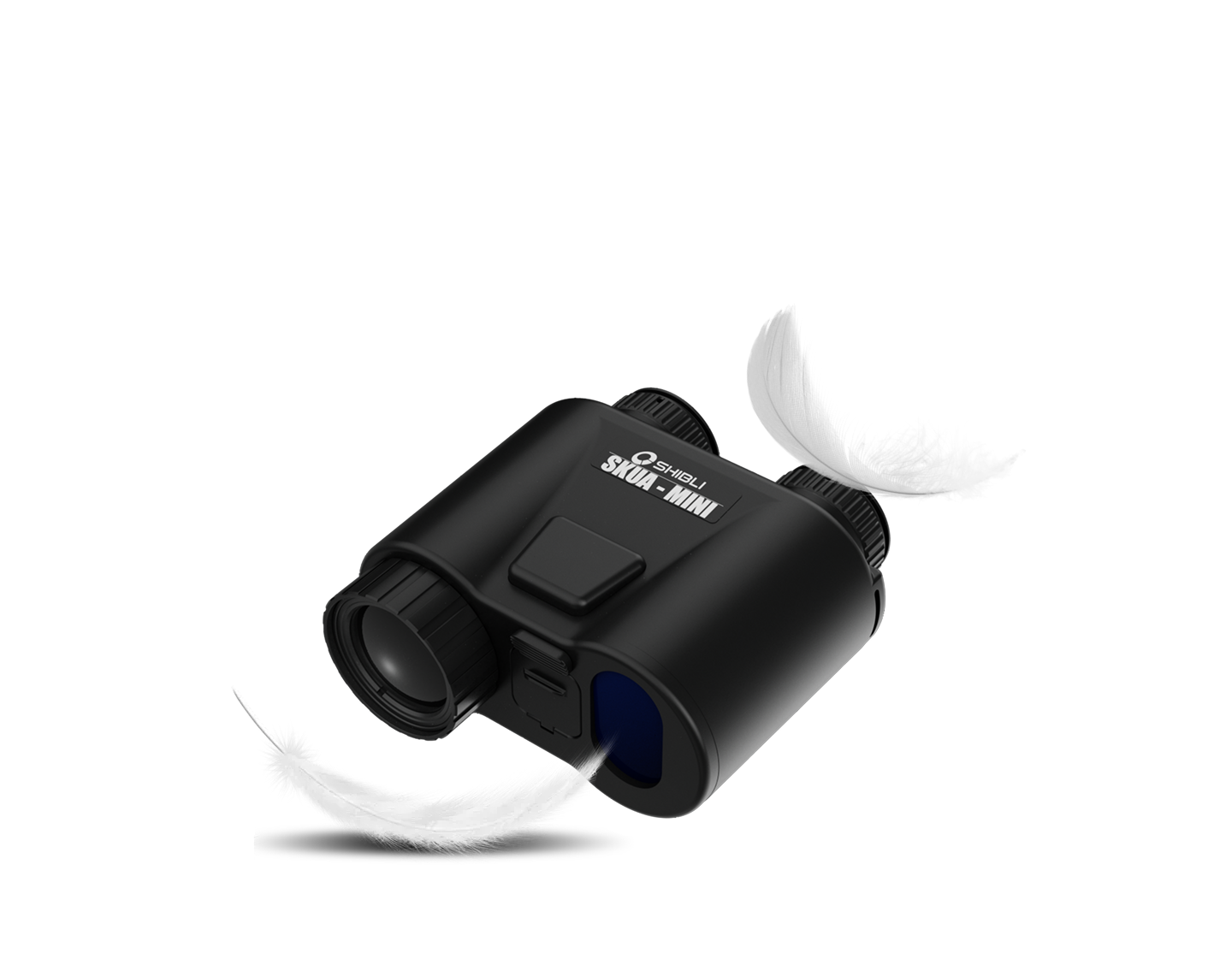

Feather Weight
Light in the hand SKUA-MINI is only 500 grams. The sight offers great agility and portability when carrying in open fields or during long duration observations even in handheld mode.
Tougher than tough
SKUA-MINI is small and tiny but boasts a robust design capable to survive harsh weather conditions. The sight is fully water proof and sealed giving user the liberty to use the sight whenever wherever required.
Everyone's first choice
The sight retro-designed keeping in view the ease users share with conventional design of Binoculars. To enhance the same experience SKUA-MINI offers high quality thermal image in the same shell with similar weight when compared to a standard day binocular.
Specifications
MAIN FEATURES | ||
 | Detector | 640 x 480, 12µm (NETD < 50mK) |
| Objective Lens | 50mm | |
| Magnification | 2.8x | |
| Field of view (HxV) | 8.8° x 6.6° | |
| Detection range (vehicle) | 3000m | |
| Products | SKUA MINI | |
Sensor | Type | Uncooled |
| Detector Resolution (Pixels) | 640 x 480 | |
| Pixel Pitch | 12µm | |
| Thermal Senstivity (NETD) | <50mk | |
| Spectral Band | 8um-14um | |
| Frame rate | 50Hz | |
Optics | Objective lens | 50mm, |
| F Number | 1.2 | |
| Digital Magnification | 1x, 2x, 4x | |
| Optical Magnification | 2.8x | |
| Field of view (HxV) | 8.8×6.6 | |
| Diopter Adjustment Range | 2 to -6 | |
| Eye relief | 18 | |
Display | Type | OLED |
| OLED Resolution (Pixels) | 1024×768 | |
Range Performance | Detection range (Human) | 1800 |
| Recognition range (Human) | 900 | |
| Identification range (Human) | 450 | |
| Detection range (Vehicle) | 3000 | |
| Recognition range (Vehicle) | 1200 | |
| Identification range (Vehicle) | 600 | |
Photo, Video Recorder | Video Recording (In-Built) | Yes |
| Image Storage (inbuilt) | Yes | |
| Image Storage Qty | Yes | |
| Video Recording Duration | Yes | |
| Memory Size | 32GB | |
Wi-Fi | Wireless connectivity | Yes |
| Mobile Application | Yes | |
Environmental Characteristics | Degree of protection | IP68 |
| Operating temperature range | -35°C to +55°C | |
| Storage temperature range | -35°C to +55°C | |
| Relative Humidity | 30%<RH<90% | |
| STD for Shock and Vibration | MIL-STD-810G | |
| STD for Water Immersion | MIL-STD-810G | |
| Water Immersion | 1m – 30min, dT°=27°C | |
Compatibility | Standard Mount Name | Universal 1/4 Tripod interface |
| Mounting Type | Screw | |
Power Supply | Battery type | 18650 |
| Battery Time (Rechargeable) | 5 hrs | |
| External Power Input | Yes | |
| Start up time | Startup Time | ≤ 6 sec |
| Dimensions | Dimension Complete | 134x132x63 |
| Weight | Weight (without battery pack & female picatinny), kg | < 0.8kg |
| COLOR PALLETTES | Available COLOURS | White hot / Black hot |
Polarity & Color Palettes
The SKUA-MINI is equipped with both white hot and black hot image display options presenting image detail options for convenience of users so that visibility is maximized.
