Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars

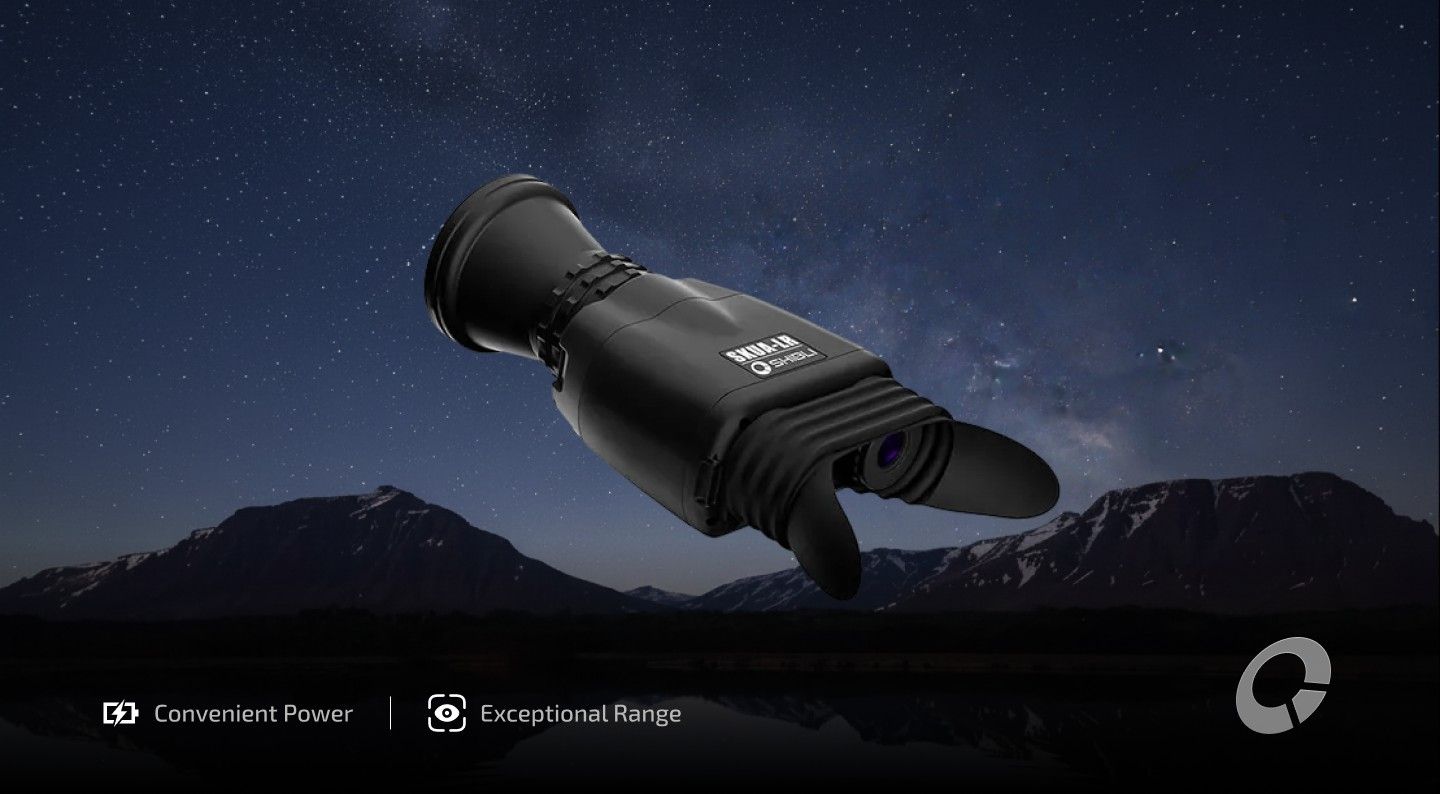

SKUA-LR
Thermal Binocular
Your Most Trusted Thermal Binocular
As an advanced observation solution, designed to cater modern security, outdoor and protection needs,
SKUA-LR is lightweight and performance packed to provide high quality vision in all climatic conditions at long ranges.
“Chosen in situations where clarity is of utmost priority.”
Explore SKUA-LR
Thermal Binocular
See Further
& Beyond
High quality germanium optics and supreme thermal image processing in SKUA-LR ensures detection at 4 Km in complete darkness giving the user greater time to respond.
Human 2500m
Vehicle 4000m
Instant & Endless Power
With SKUA-LR, user does not has to worry about the battery. With a running duration of more than 10 hours on 4 AA batteries, the SKUA-LR is energy-efficient and user friendly. This greatly cuts down on “down-time due to charging” or absence of power sources in remote areas.
The SKUA-LR features an instant start-up technology to not miss a thing.
Unmatched
Situational Awareness
The SKUA LR delivers crisp and clear image (Black Hot / White Hot) in day and night scenarios, as well as in other extreme weather conditions such as torrential rain, smoke and fog, with a high resolution 17μm 640×480 IR core, in-built memory for image capture and video recording, 4x electronic zoom and a FOV of 6.2 x 4.6 degrees. This high tech Offering superior visibility, timely detection and preparedness in all situations.
The Natural Way To See
The human brain is accustomed to see with both eyes. The SKUA- LR caters to that very need for the user, offering a dual eye piece viewing along with soft rubber eye guards for prolonged and comfortable use, limiting eye fatigue for maximum focus and long observation.
Both eye pieces in SKUA-LR offer adjustments to personalize the image according to eyesight.
Oblivious to the weather
Designed for optimal performance and long lasting durability, the SKUA-LR boasts a full, flawless waterproof and lightweight metal structure with precision encasing. The unit is designed to run flawlessly in the face of submersion up to 1 meter for 1 hour or harsh climatic conditions including extremely hot and freezing temperatures.
More Features
DRI Range Performance with
Actual Targets
Specifications
SKUA-LR
SKUA-LR
MAIN FEATURES |
||
 |
Detector | 640×480 17µm (NETD <50 mK) |
| Objective Lens | 100mm | |
| Magnification | 4x | |
| Field of view (HxV) | 6.2° x 4.6° | |
| Detection range | 4000m | |
| Products | SKUA LR 17µm | |
Sensor | Type | Uncooled |
| Detector Resolution (Pixels) | 640 x 480 | |
| Pixel Pitch | 17µm | |
| Thermal Senstivity (NETD) | ≤ 100mk | |
| Spectral Band | 8um-12um | |
| Frame rate | 30Hz | |
Optics | Objective lens | 100mm |
| F Number | 1.2 | |
| Digital Magnification | 1x, 2x, 4x | |
| Optical Magnification | 4x | |
| Field of view (HxV) | 6.2×4.6 | |
| Diopter Adjustment Range | 2 to -6 | |
| Display | Type | OLED |
Range Performance | Detection range (Human) | 2500 |
| Recognition range (Human) | 1200 | |
| Identification range (Human) | 800 | |
| Detection range (Vehicle) | 4000 | |
| Recognition range (Vehicle) | 2000 | |
| Identification range (Vehicle) | 1200 | |
Photo, Video Recorder | Image Storage (inbuilt) | Yes |
| Image Storage Qty | 128 Images | |
| Video Recording Duration | 15 min | |
Environmental Characteristics | Operating temperature range | -35°C to +55°C |
| Storage temperature range | -40°C to +60°C | |
| Relative Humidity | 30%<RH<90% | |
| STD for Shock and Vibration | MIL-STD-810G | |
| STD for Water Immersion | MIL-STD-810G | |
| Water Immersion | 1m – 30min, dT°=27°C | |
Power Supply | Battery Time (Rechargeable) | 10 hrs |
| External Power Input | Yes | |
| Start up time | Startup Time | ≤ 5 sec |
| Dimensions | Dimension Complete | 302 x 142 x 116.62 |
Weight | Weight (Complete), kg | 1.6 kg |
| Weight (without battery pack & female picatinny), kg | 1.4 kg | |
| COLOR PALLETTES | Available COLOURS | White hot / Black hot |
Product Overview
The SKUA-LR is a Long Range Handheld Thermal security camera by SHIBLI . Portable and lightweight, SKUA LR is an advanced integrated cutting-edge security solution, designed to cater to modern security and protection needs, available with our flagship high resolution sensors and high performance colored OLED micro display. Sound and compact, SKUA-LR provides the user with complete situational awareness without exposure, designed for rugged reliance.
Polarity & Color Palettes
The SKUA-LR is equipped with both white hot and black hot image display options presenting detail as per requirement of the users so that visibility is optimum in all conditions.
Accessories
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
