TERRIER NV
COOLED MULTIFUNCTIONAL THERMAL BINO
CONQUER THE DARKNESS

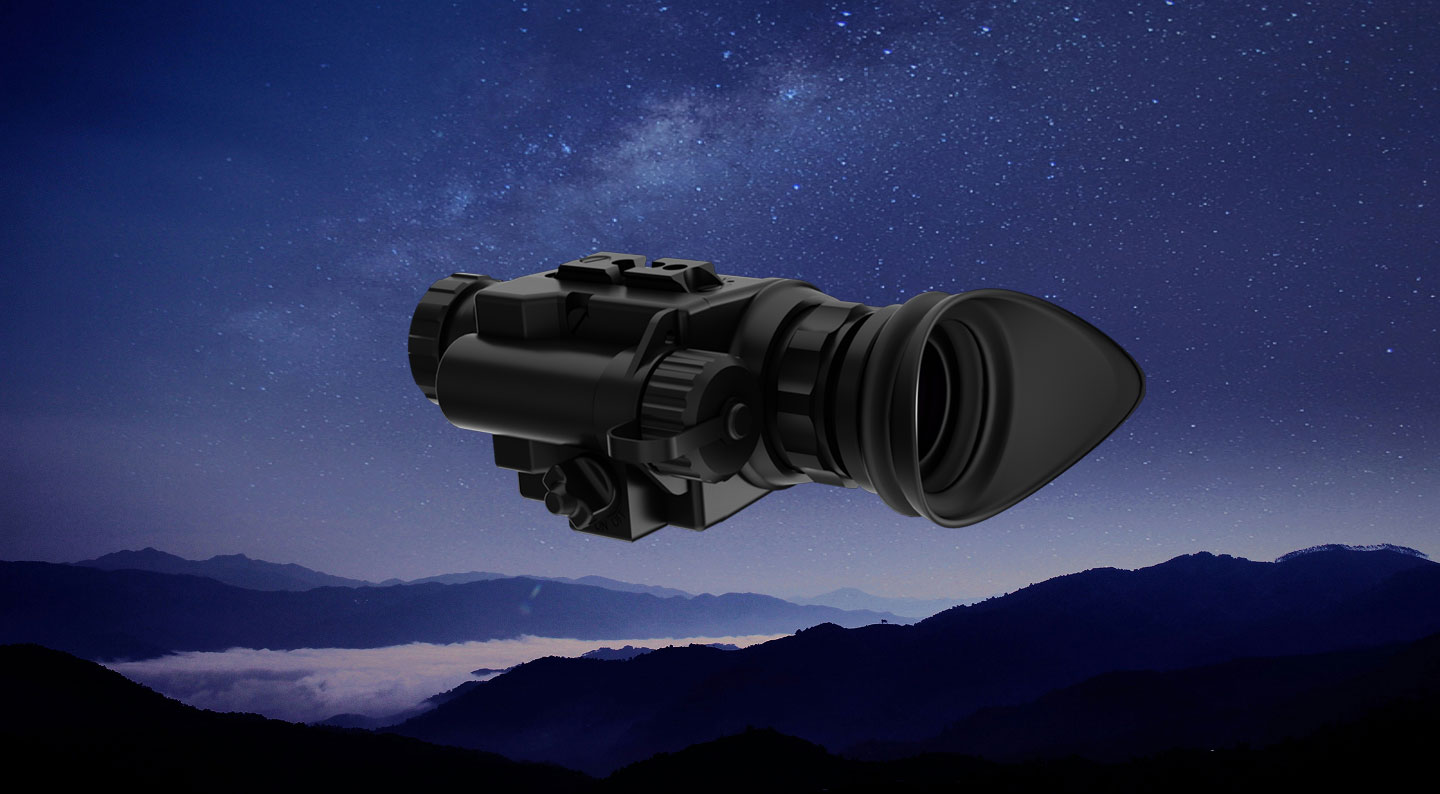

TERRIER-NV is a lightweight portable night vision observation device designed for operation in a complex with IR designators and illuminators, red-dot sights. Monocular complies with all the possible requirements of army and law . enforcement. TERRIER is a version of monocular with IIT Brightness Adjustment for comfortable operation.
Explore TERRIER-NV
Built-in Infra Red (IR) Illuminator
The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. They provide
convenient use both when using monoculars together, and when used separately.
Feather Weight
Light in the hand TERRIER-NV is only 330 grams. Making it a compact powerhouse in terms of its performance. The sight offer great agility and portability when carrying in open fields or during long duration observation .
Impervious to Water
TERRIER-NV is water resistant and operate normally even after 1 meter 1 hour of water immersion. The sight is sealed by SHIBLI’s advance sealing technology to make it outdoor friendly.
Specifications
| PRODUCT | NIGHT VISION DEVICE | |
| NIGHT VISION CHANNEL | Image Intensifier | Gen 2+ Auto Gating, P45 |
| F.O.M. (Figure of Merit) | ≥1600 | |
| OBJECTIVE LENS | Optical Magnification | 1× |
| Focal Distance (Objective Lens) | 26.4 mm | |
| Lens Shift | f / 1.2 | |
| Range of Focusing | 0.25 m → ∞ | |
| F.O.V. | 40° | |
| Overall Dimensions | 166 × 52 × 76 mm | |
| Weight | 330 g | |
| Signal to Noise Ratio | > 25 dB | |
| Eye Relief | 25 mm | |
| Resolution | 64 lp/mm | |
| Halo | 0.8 mm | |
| Black Spot |
Zone 1 (Center optic) = 0 Zone 2 (Annulus concentric) = 1 Zone 3 (Annulus) = 1 |
|
| SYSTEM PARAMETERS | Image Intensifier Warranty Resource | 10,000 hours |
| Continuous Operation Time | > 40 hours | |
| Power Supply | 1 × AA battery | |
| GENERAL PARAMETERS | Operating Temperature Range | -40°C → +50°C |
| Protection Level | IP68 | |
| Diopter Adjustment Range | -6 … +2 dptr. | |
| Integrated IR Illuminator | + | |
| Light Overload Sensor | + | |
| Automatic Light Overload Switch-Off | + | |
| Low-Battery Indication (Battery Discharge) | + | |
| Polarity-Mistake Protection (Any Polarity) | + |
