Unleash the Power of the Night
Unleash the unparalleled power of the Orca-NV : a binocular night vision goggle system equipped with cutting-edge
image intensifier tubes.
Explore ORCA-NV

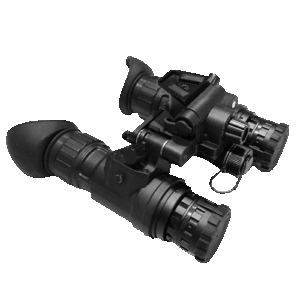

Night Vision Goggles
Built-in Infra Red (IR) Illuminator
The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. They provide
convenient use both when using monoculars together, and when used separately.
Feather Weight
Light in the hand ORCA-NV is only 600 grams. Making it a compact powerhouse in terms of its performance. The sight offer great agility and portability when carrying in open fields or during long duration observation .

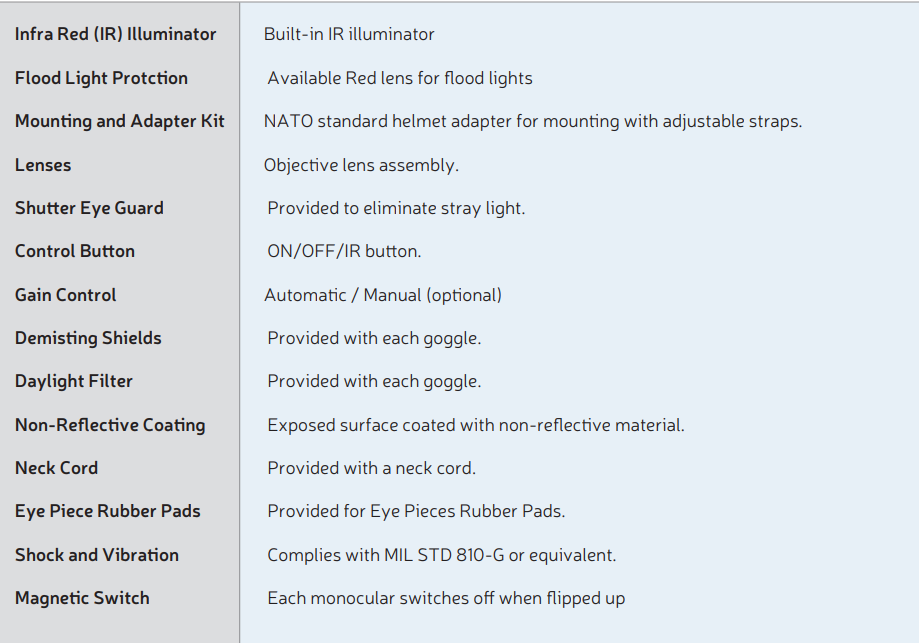

Characteristics
Impervious to Water
ORCA-NV is water resistant and operate normally even after 1 meter 1 hour of water immersion. The sight is sealed by SHIBLI’s advance sealing technology to make it outdoor friendly.
Specifications
MAIN FEATURES | ||
 | Detector | 68 +lp/mm |
| Objective Lens | 25mm | |
| Magnification | 1x | |
| Field of View | 40° ± 1° | |
| FOM | >2000 | |
| PRODUCT | ORCA-NV | |
NIGHT VISION CHANNEL | IIT Generation | Gen 3+ Black and White with Auto Ga ting Func tion |
| FOM | >2000 | |
| Resolution | 68+ lp/mm | |
| Signal-Noise-Ratio | 29-31 | |
OPTICAL SPECS | Optical Magnification | 1x |
| Exit pupil diameter | 22.5 mm | |
| Focus adjustment range | 20cm to ∞ | |
| F.O.V. | 40° ± 1° | |
| Objective Focal Length | >25mm | |
| Eye Relief | 25mm | |
| Objective F Number | 1:1, 2 | |
| Lens Focus Range | 0.25m to ∞ | |
| Eye Piece Lens Aperture | 22, 5 | |
| Gain | Automa tic and Manual Gain Control | |
| Diopter adjustment range of ocular | -6 to +2 dptr | |
| Interpupillary distance adjustment range | 54 – 77 mm | |
ELECTRICAL SPECS | Image Intensifier Warranty Resource | 10 000 hours |
| Power Supply | АА Li, 1.5V External battery compartment (20HR) | |
| Bright Light Cut Off | Available | |
ENVIRONMENTAL SPECS | Operating temperature range | -25 ˚ С to+50 ˚ С |
| Humidity | upto 98% RH | |
| Temprature Range for Storage | -20 °C to + 60 °C | |
| Specification | MIL-STD-810G | |
| Submersible | IP68 (Submersive up to 15 m) | |
DIMENSIONS AND WEIGHT | Overall dimensions | 160 х 100 х 80 mm |
| Helmet Mounting Adapter Dimension | as per NATO standard | |
| Weight | 600g | |
| Shelf Life | 10 Years |

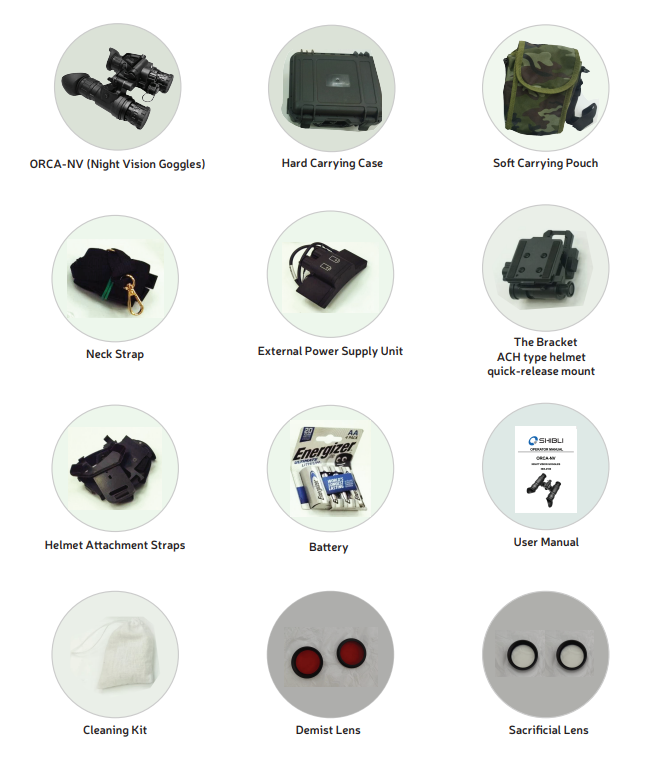

Accessories
Disclosure
The product availability on website is for marketing purpose only and does not guarantee/imply that the device
is available in your country for use/sell/order/other purposes.
