ERMINE NV
COOLED MULTIFUNCTIONAL THERMAL BINO
CONQUER DARKNESS
Unleash the unparalleled power of the Ermine: a bi-ocular night vision goggle system equipped with cutting-edge image intensifier tubes. This hands-free device seamlessly integrates high-grade optics, reliable electronics, and superior performance, ensuring bright and crystal-clear night vision images even in the most adverse environments. The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. With its waterproof, rugged, lightweight, and compact design, the Ermine stands as the ultimate companion for a diverse range of demanding operations. Experience unmatched clarity, reliability, and versatility in every mission.
Explore ERMINE NV
Built-in Infra Red (IR) Illuminator
The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. They provide
convenient use both when using monoculars together, and when used separately.
Other Features

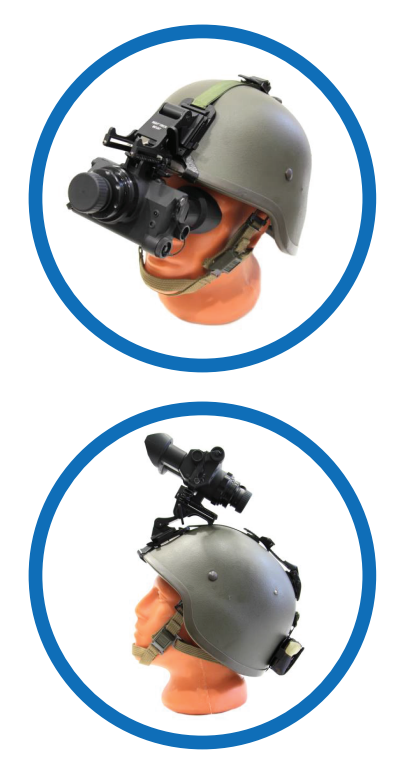

- Head or helmet-mountable for hands-free operation
- Ergonomic
- Overload protection
- External power supply
Impervious to Water
ERMINE-NV is water resistant and operate normally even after 1 meter 1 hour of water immersion. The sight is sealed by SHIBLI’s advance sealing technology to make it outdoor friendly.
Specifications
| NIGHT VISION CHANNEL | ||
|---|---|---|
| Image Intensifier | Gen 3 | |
| Resolution | 60 – 68 lp/mm | |
| Signal-Noise-Ratio | 19 – 25 | |
| Screen Color | Green / Black-White | |
| OBJECTIVE LENS & GENERAL PARAMETERS | ||
| Optical Magnification | 1x | 3x |
| Focal Distance (Objective Lens) | 18 mm | 50 mm |
| Range of Focusing | 0.25 m – ∞ | 6 m – ∞ |
| F.O.V | 40° | 12° |
| Overall Dimensions | 165 × 125 × 60 mm | 230 × 125 × 60 mm |
| Weight | 0.4 kg | 0.55 kg |
| SYSTEM PARAMETERS | ||
| Image Intensifier Warranty Resource | 10 000 hours | |
| Power Supply | 2 × AA battery | |
| Continuous Operation Time | ≥ 60 hours | |
| OBJECTIVE LENS & GENERAL PARAMETERS | ||
| Optical Magnification | 1x | 3x |
| Detection Distance (human–1.7×0.5m) | 300 m | 450 m |
| Recognition Distance (human–1.7×0.5m) | 200 m | 350 m |
| GENERAL PARAMETERS | ||
| Operating Temperature Range | -30 °C … +50 °C | |
| Protection Level | IP67 | |
| Diopter Adjustment Range | -5 … +5 dptr. | |
| Interpupillary Adjustment Range | 65 ± 5 mm | |
| Light overload sensor | + | |
| Automatic light overload switch-off function | + | |
| Low-battery indication (Battery discharge) | + | |
| Automatic Brightness Control | + | |
