Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
TARSIER LR 80
COMPACT YET POWERFUL.

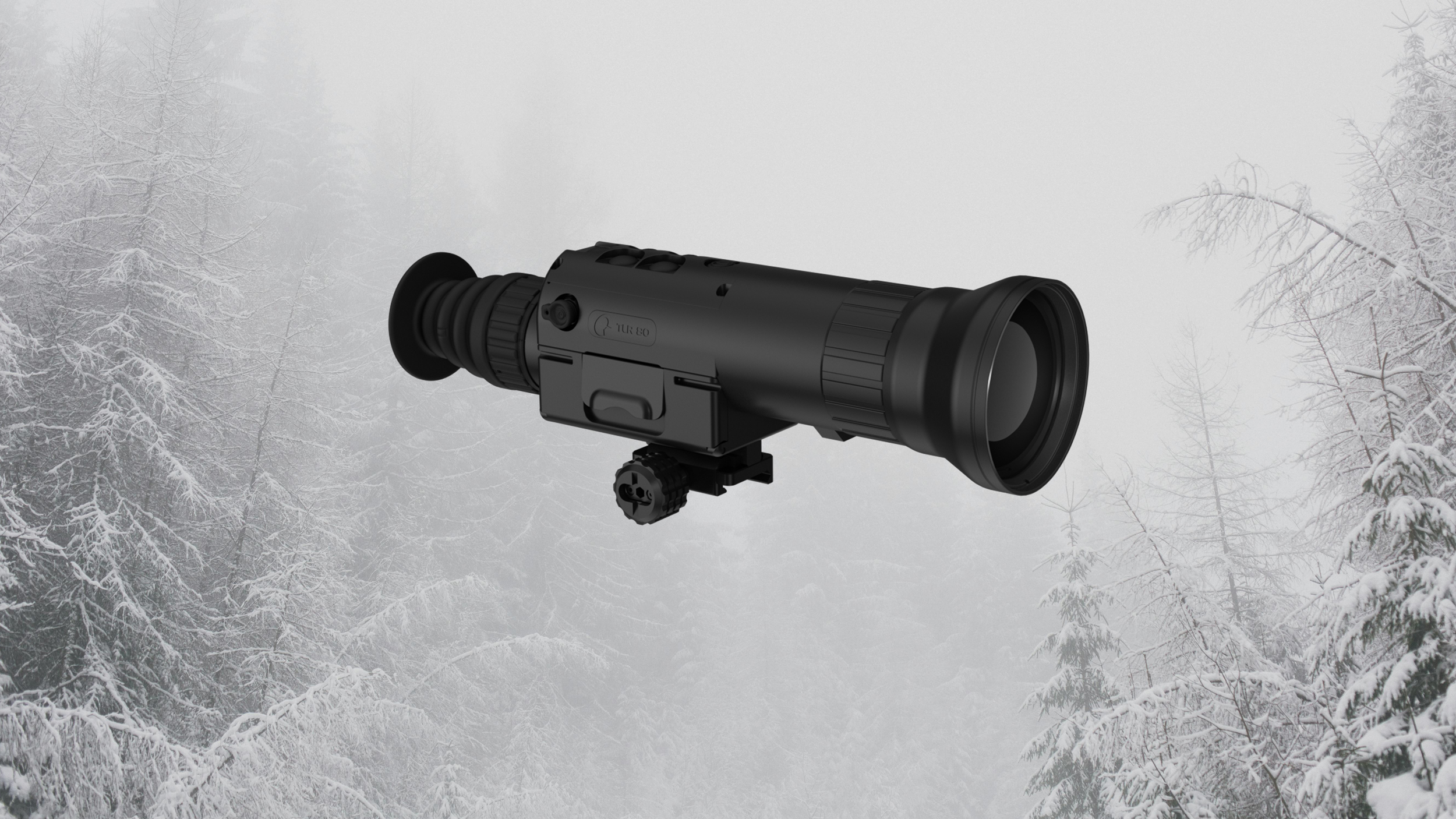

TARSIER LR 80
LONG RANGE THERMAL SIGHT
TARSIER 80mm is compact thermal sight for users seeking a quality thermal image without any compromise on long range target acquisition and accuracy. TARSIER LR 80mm can be a part of critical operations related to observation, surveillance, range finding and long distance engagement.
Convenient Power
Power up the sight with 2x 18650 Battery
Exceptional Range
Detect Vehicle Size Targets up to 4000 meters
Experience High Quality
12µm 640 x 480 Sensor for an amazing view & clarity
Explore
TARSIER LR 80
Special Features
White Hot View
In White Hot mode, warmer objects appear brighter against cooler surroundings, giving you a crisp and intuitive thermal picture. This view is ideal for quick detection, target tracking, and scanning wide areas with maximum contrast.
Black Hot View
Black Hot mode displays heat signatures as darker shades, making it easier to identify shapes, terrain details, and human silhouettes. This is especially effective in high-temperature environments and long-range target observation.
Long-Range Target Acquisition - Operational Surveillance & Observation
Designed to support missions requiring reliable observation and engagement.
APPLICATIONS
- Forward Observation
- Surveillance
- Situational Awareness
- Force Protection
- Border Patrol
- Port Security
- Counter Insurgency Operation
- Maritime Surveillance
- Facility Protection
- Search and Rescue
Specifications
TARSIER LR 80
TARSIER LR 80
| TECHNICAL SPECIFICATIONS | TARSIER LR (80mm) |
|---|---|
| Detector Resolution (pix) | 640 × 480 pixels |
| Spectral Band of Detector | 8–12µm |
| Thermal Sensitivity | <50 mK |
| Pixel Pitch | 12µm |
| Field of View (FOV) | 5.5° × 4.1° |
| Optical Magnification | 4.5× |
| Digital Magnification | 1×, 2×, 4× |
| Focus Type | Manual |
| Focal Length | 80mm |
| Micro Display Type | OLED |
| Functions | 4 Polarities, Gain Adjustment (Auto, 1–12), Brightness Control (5 Levels) |
| OLED Resolution | 640 × 480 pixels |
| Human Detection Range | 2000 m |
| Human Recognition Range | 1000 m |
| Human Identification Range | 800 m |
| Vehicle Detection Range | 4000 m |
| Vehicle Recognition Range | 2200 m |
| Vehicle Identification Range | 1200 m |
| Time to Operation | ≤ 6 sec |
| Battery Type | 2 × 18650 |
| Reticle Type | 10 reticle options |
| Image Storage & Recording | Image storage available |
| Memory | 32 GB |
| Material | High Grade Aluminum Anodized |
| Environmental Standard | MIL-STD-810G |
| Operating Temperature | −35°C to +55°C |
| Storage Temperature | −40°C to +60°C |
| Image Polarities | Black Hot / White Hot |
| Weight (without battery) | <1100 g (with female picatinny) |
| Weight (with battery) | <1250 g |
| Frame Rate | 30 fps |
| WiFi Hotspot | Yes |
Accessories
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
Request a Demo
If you would like to find out more about our products or how we can help you, please give us a call or drop us an email.
We welcome your queries, comments and suggestions and always look forward to hear from you.
