Guardian Pro
BSS
GUARDIAN
COOLED EO SURVEILLANCE SYSTEM
Guardian Pro is a cutting-edge, multi-sensor border and perimeter security system built
for 24/7 operation in extreme environments. Equipped with cooled MWIR thermal
imaging and high-resolution EO cameras, it delivers precise long-range detection and
tracking in all weather conditions. Its cooled thermal core enhances sensitivity and
range, while rugged design and intelligent integration make it a new standard in
advanced border surveillance and defense technology
Day Camera/IR Illuminator
Day camera for full-spectrum observation
Laser Rangefinder
Laser rangefinder for accurate distance measurement
Pan-Tilt Control
Full-area coverage with smooth horizontal & vertical Pan-Tilt control.

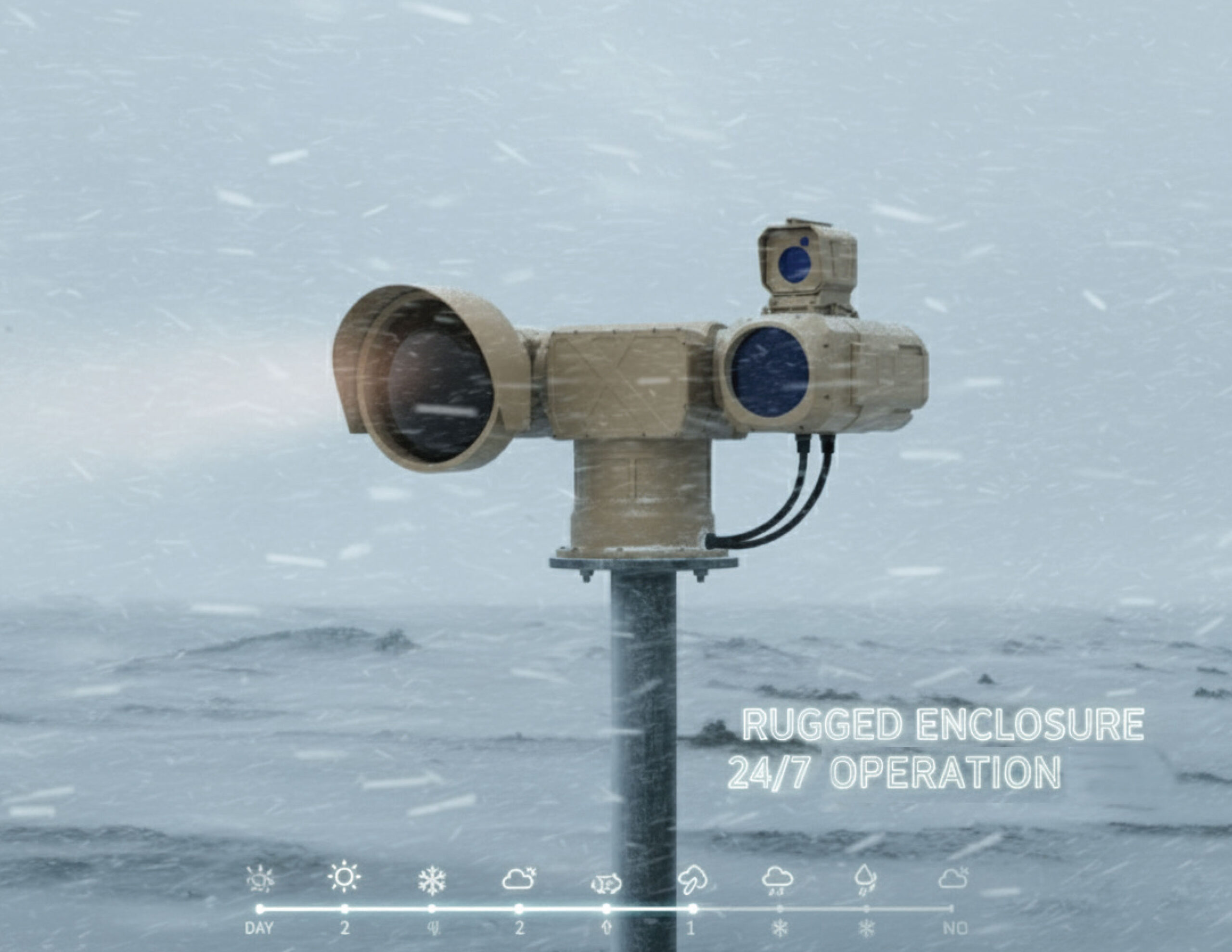

Rugged, Field-proven design
Ready for the harshest environments
Explore
Guardian Cooled
C2 COMMAND & CONTROL WITHOUT BOUNDARIES
Guardian integrates effortlessly with third-party or in-house C2 platforms, offering maximum interoperability and minimal setup. Its scalable design supports seamless expansion, while an intuitive interface enables real-time daylight, thermal, and IR monitoring with drag-and-drop control.
Behind the scenes, Guardian delivers intelligent workload management with device prioritization, advanced security, smart alarms, video archiving, and powerful
automation. Whether on your C2 or ours Guardian keeps you connected, protected, and in control, in any light, any time.
Features
- Sensor Control & Switching
- Real-Time Video Feed
- Target Detection & Tracking
- Map Integration (GIS)
- Event & Alert Management
- PTZ Control
- AI-Based Analytics
- Multi-Cam & Network Support
- Comms & Networking
ENDLESS VIGILANCE. ZERO DOWNTIME
Equipped with cooled MWIR thermal sensors, Full HD day cameras, and
intelligent target tracking, Guardian Pro delivers high-precision detection,
recognition, and identification — even in low visibility or extreme conditions.
KEY CAPABILITIES
- 24/7 surveillance with thermal and optical coverage
- AI-assisted target recognition and automatic tracking.
- Seamless command center integration with live alerting.
- Modular deployment , vehicle-mounted or fixed installations.

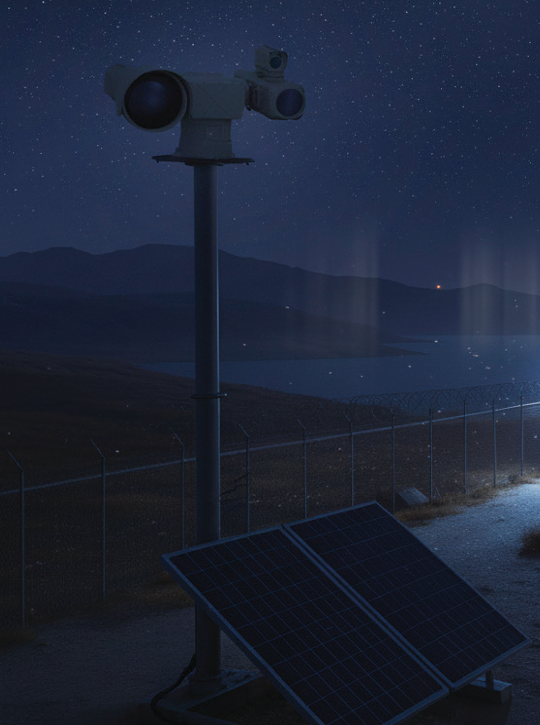

- Autonomous operation via solar and hybrid power systems
Specifications
Guardian Pro 640x512
Guardian Pro 1280x1024
Guardian Pro 640x512
| THERMAL IMAGER CAMERA (NIGHT) | ||
|---|---|---|
| Spectral Range | 3–5 μm | |
| Sensor Resolution | 640 × 512 | |
| Pixel Size | 15 μm | |
| Focal Length | 30–660 mm F/4.0 | |
| Wide FOV | 18.2° × 14.6° ± 10% | |
| Narrow FOV | 0.83° × 0.67° ± 10% | |
| Functions | AGC, Brightness/Contrast, Polarity, Non-uniformity Correction | |
| TV CAMERA (DAY) | ||
| Sensor Type | 1/1.8″ CMOS Sensor | |
| Sensor Resolution | Full HD 1080p (1920 × 1080) | |
| Optical Zoom | ×52 | |
| Digital Zoom | ×16 | |
| ESTIMATED DRI RANGES – TV CAMERA (DAY) | ||
| Name (Object Size CD(real) m) | Detection (2.25) | Recognition (9) / Identification (18) |
| Human (CD 0.95 – 1.8 × 0.5 m) | 17 518 m | 3 504 m / 1 752 m |
| Vehicle (CD 2.3) | 16 642 m | 3 328 m / 1 664 m |
| Truck (CD 4.24 – 6 × 3 m) | 40 292 m | 8 058 m / 4 029 m |
| DJI Mavic (CD 0.19 – 34.7 × 10.7 cm) | 74 324 m | 14 865 m / 7 432 m |
| ESTIMATED DRI RANGES – THERMAL IMAGER (NIGHT) | ||
| Name (Object Size CD(real) m) | Detection (2.25) | Recognition (9) / Identification (18) |
| Human (CD 0.95 – 1.8 × 0.5 m) | 18 578 m | 4 644 m / 2 322 m |
| Vehicle (CD 2.3) | 44 978 m | 11 244 m / 5 622 m |
| Truck (CD 4.24 – 6 × 3 m) | 82 916 m | 20 729 m / 929 m |
| DJI Mavic (CD 0.19 – 34.7 × 10.7 cm) | 3 716 m | 10 364 m / 464 m |
| OPTICAL PARAMETERS | ||
| Focal Length | 20–1200 mm | |
| Wide HFOV | 19.0° × 16.0° ± 10% | |
| Narrow HFOV | 0.32° × 0.27° ± 10% | |

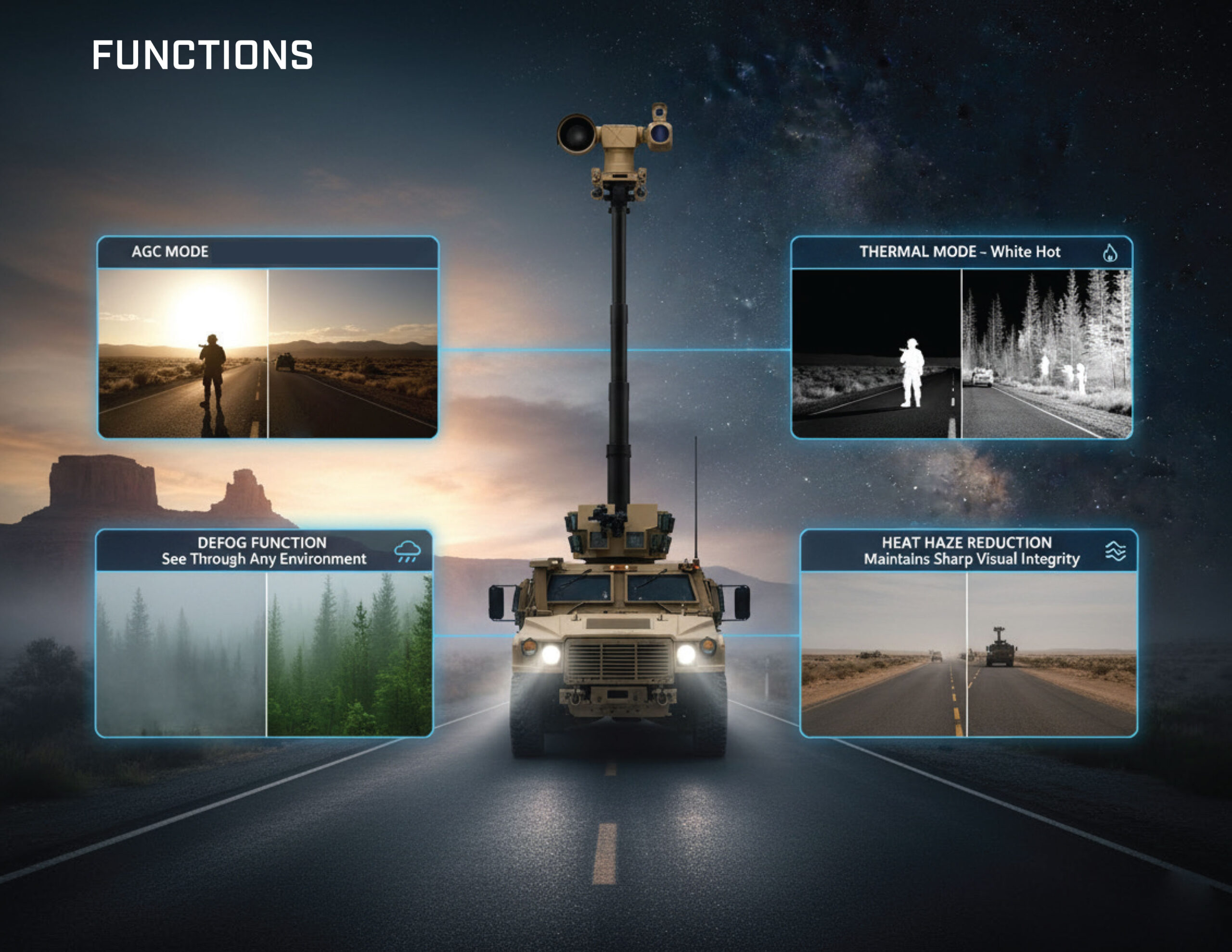

| Functions | Heat Haze Reduction, Visibility Enhancer, Defog, AGC Mode | |
| LASER RANGE FINDER (OPTIONAL) | ||
| Wavelength | 1.54 μm | |
| Range | 100 m – 15 000 m | |
| Measurement Accuracy | ±2 m | |
| PAN-TILT PLATFORM | ||
| Pointing Accuracy | 0.001° | |
| Azimuth Range | 360° × n (continuous) | |
| Elevation Range | -90° to +90° | |
| Max Speed (Azimuth & Elevation) | Up to 80°/s | |
| GENERAL SPECIFICATIONS | ||
| Weight (max) | 60 kg | |
| Dimensions | 500 × 890 × 540 mm | |
| Data & Video Interface | Ethernet, Fiber Optics (optional) | |
| Power Supply | 48 V DC ± 10% | |
| Power Consumption | 500 W | |
| Operating Temperature | -32 °C to +45 °C | |
Guardian Pro 1280x1024
| THERMAL IMAGER CAMERA (NIGHT) | ||
|---|---|---|
| Sensor Type | Cooled | |
| Spectral Range | 3–5 μm | |
| Sensor Resolution | 1280 × 1024 | |
| Pixel Size | 10 μm | |
| Focal Length | 40–1000 mm F/4.0 | |
| Wide FOV | 18.1° × 14.3° ±10% | |
| Narrow FOV | 0.73° × 0.58° ±10% | |
| Functions | AGC, Brightness/Contrast, Polarity, Non-uniformity Correction | |
| TV CAMERA WITH CONTINUOUS ZOOM (DAY) | ||
| Sensor Type | 1/1.7″ CMOS Sensor | |
| Sensor Resolution | Full HD 1080p (1920 × 1080) | |
| Optical Zoom | ×60 | |
| Digital Zoom | ×16 | |
| Focal Length | 20–2000 mm | |
| Wide HFOV | 24.5° × 14.3° ±10% | |
| Narrow HFOV | 0.21° × 0.16° ±10% | |
| Functions | Heat Haze Reduction, Visibility Enhancer, Defog, AGC Mode | |
| LASER RANGE FINDER (OPTIONAL) | ||
| Wavelength | 1.54 μm | |
| Range | 100 m – 15 000 m | |
| Measurement Accuracy | ±2 m | |
| PAN-TILT PLATFORM | ||
| Pointing Accuracy | 0.001° | |
| Azimuth Range | 360° × n (continuous) | |
| Elevation Range | -90° to +90° | |
| Max Speed (Azimuth & Elevation) | Up to 80°/sec | |
| GENERAL SPECIFICATIONS | ||
| Weight (max) | 60 kg | |
| Dimensions | 500 × 890 × 540 mm | |
| Data & Video Interface | Ethernet, Fiber Optics (optional) | |
| Power Supply | 48 V DC ± 10% | |
| Power Consumption | 500 W | |
| Operating Temperature | -32 °C to +45 °C | |
| ESTIMATED DRI RANGES – TV CAMERA (DAY) | ||
| Name | Detection (2.25) | Recognition (9) / Identification (18) |
| Human (CD 0.95 – 1.8 × 0.5 m) | 16 889 m | 3 378 m / 1 689 m |
| Vehicle (CD 2.3) | 40 889 m | 8 178 m / 4 089 m |
| Truck (CD 4.24 – 6 × 3 m) | 75 378 m | 15 076 m / 7 538 m |
| DJI Mavic (CD 0.19 – 34.7 × 10.7 cm) | 3 378 m | 676 m / 338 m |
| ESTIMATED DRI RANGES – THERMAL IMAGER (NIGHT) | ||
| Name | Detection (2.25) | Recognition (9) / Identification (18) |
| Human (CD 0.95 – 1.8 × 0.5 m) | 42 222 m | 10 556 m / 5 278 m |
| Vehicle (CD 2.3) | 102 222 m | 25 556 m / 12 778 m |
| Truck (CD 4.24 – 6 × 3 m) | 188 444 m | 47 111 m / 23 556 m |
| DJI Mavic (CD 0.19 – 34.7 × 10.7 cm) | 8 444 m | 2 111 m / 1 056 m |
